Ground Cell
# Ground Cell type

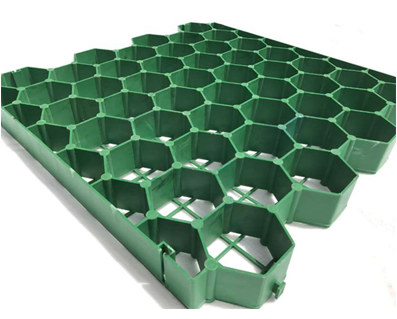

1. Grass grid
Three-dimensional cylindrical structure has been connected to a plurality of levers to have a high strength and the adjacently connected structure forms a stable and permanent grass layer. It is an eco-friendly protection product creating grass parking lots and roof gardens.
| Type | P.P |
|---|---|
| Size | 525(505) x 455(496) x 38(50) mm |
| Color | Black or Green |
Characteristic
- High vegetation area (95%)
- Excellent drainage
- Economic cost reduction
- Excellent water storage
- Easy construction to save air
- Secure grass
- High strength and life
- Advantageous to the flattening of the floor

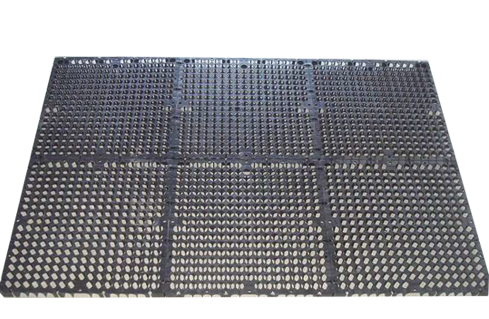

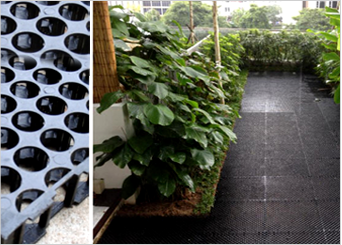

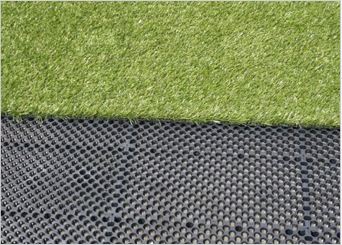

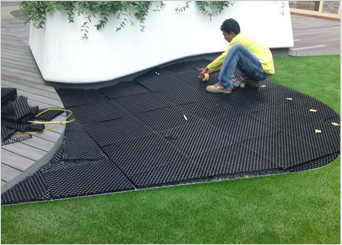

2. Drain Cell
Drainage protection material with high compressive strength provides waterproofing and ventilation of concrete slope in order to keep the temperature constant, relieving heat stress and cracking.
| Type | P.P |
|---|---|
| Size | 400(500) x 400(500) x 30 mm |
| Color | Black or Orange |
| Surface Porosity | 60% |
| Internal porosity | 90% |
| Compressive strength | Max 1000kN/m2 |
Usage

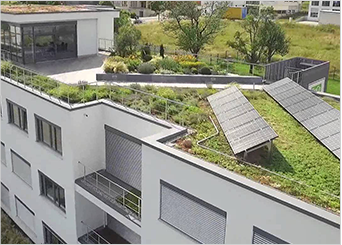

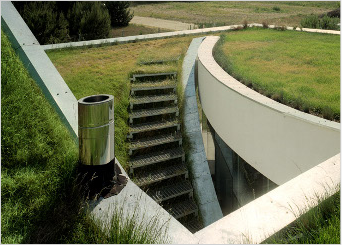

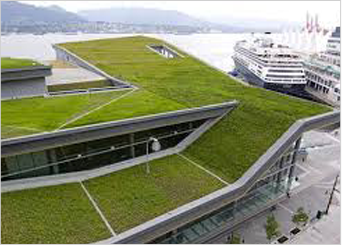

- Roof garden (green roof)
- Pond filtration
- Drainage of roofs and walls
- Pier rotation
- Pavement area and road
- Tunnel and landfill
- Sports field emissions
- Golf course
- Retraction / Foundation Wall
- Paved road for pedestrian traffic control
